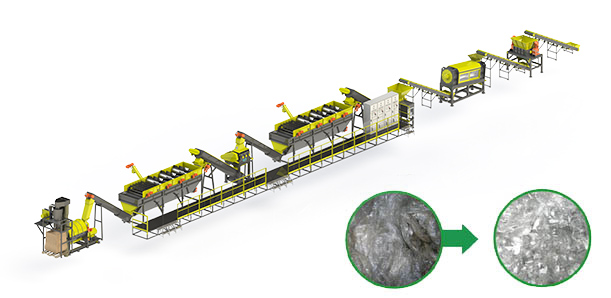

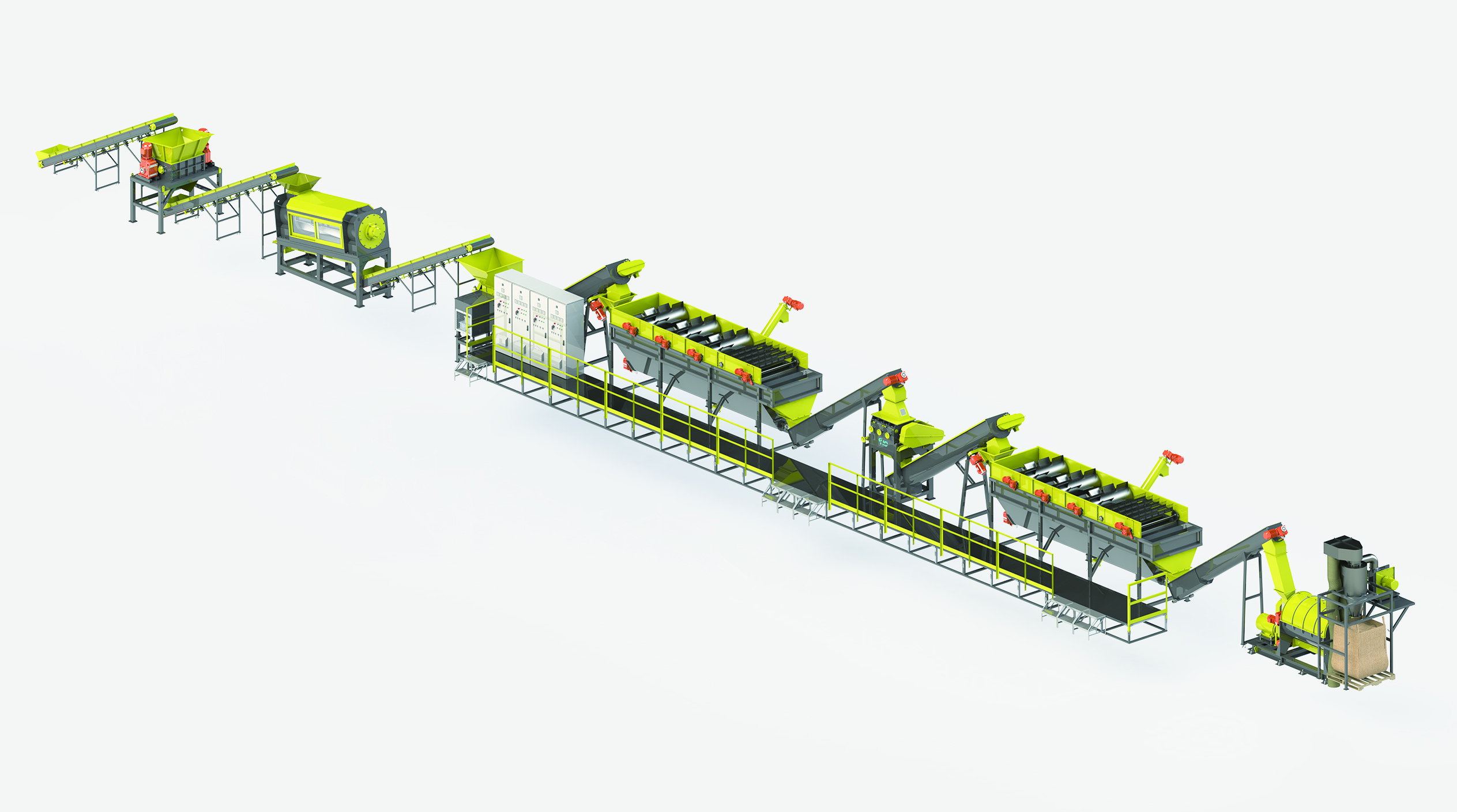

Feeding belt conveyor-even feeding the bundled or loose thin material, it¡¯s also possible that the forklift put the bundled material into shredder directly without feeding belt conveyor.
Single shaft shredder -shredding material with water,at same moment,to prewashing the material.
Screw conveyor-conveying and washing.

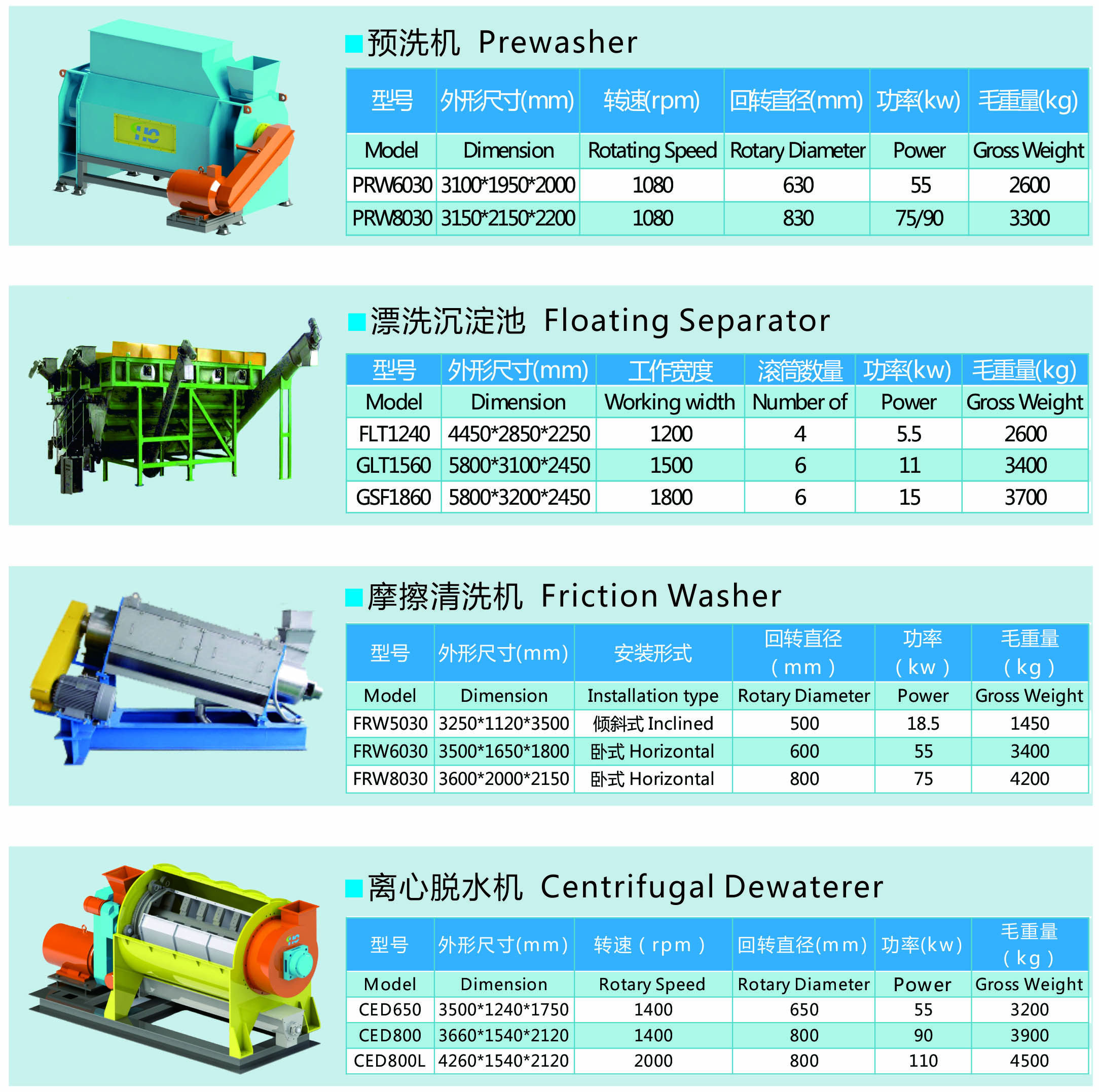

Prewasher-remove sands ,stones .
Floating separator-washing material,remove sand and impurities and separating different plastics.
High speed pulverizer-pulverizing material with water.
High temperature boiler -high temperature washing material,melting adhesive.Apply mainly to PET bottles.
Horizontal friction washer-high speed washing, water was discharged from sieve,reducing impurities for next processing.
Centrifugal dewaterer- remove most of surface water of the material.
Hot air dring system-further drying materials.
Removing label system-remove remained labels for washing bottle¡¯s material mainly.
Bagging system
Electrical cabinet
