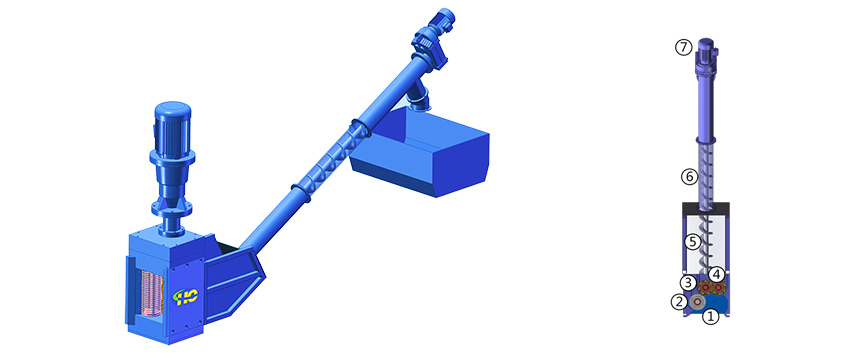

Transmission Sewage Grinder

Pipeline grinder can be installed in variety of diameter pipelines to crush the solids to 8mm*12mm particles.

Product advantage

Operation Principle

• 1． Solids enter grinders through open channel；
• 2．Solids pass through cutters for size reduction.；
• 3．Solids are cut into smaller particles and no threat to downstream equipment.


Materials of Construction

• Motor: Customized, multiple power options
• Reducer: Planet gear reducer, good ability to against the load impact
• Cutter and spacer: heat-treated alloy steel 4130 with surface harden evenly.
• The hardness is not less than 45~50HRC
• Shaft: heat-treated alloy steel 4140
• Mechanicals Seals: Tungsten Carbide faces
• Housings: Ductile cast iron ASTMA 536
• Frame: Stainless steel(304,316)

Mechanical Characteristic

• Ease and Flexibility of Installation
• ● Adapts to most existing pipelines with little or no modification
• Mechanical Seals
• ● Pressure capability up to 6.3kg/cm2;
• ● No seal flush required and no packing gland to adjust;
• Manhole
• ● Manhole diameter: 1.2m
• ● Wall thickness: 12mm
• Dual Shaft Design
• ●Low-speed, high torque grinders handle rags, rocks, wood,clothing, plastics and other debris
• ●Capable of handling a wider variety of solids than single shafted machine
• Cutter Options
• ● Customized cutters with various tooth configurations to meet special application

Control System Function

• ● PLC Control Cabinet with liquid crystal display, real time monitoring loading
• ● MODBUS standard field bus Communication interface and remote controllable
• ● Time adjustment, runtime and failure records query
• ● Automatic Reversal Function, time and times setting of reversal
• ● Leakage, Over Capacity, Overheating, Short Out and Lack of phase protection functions
• ● Authority setting function

Selection table
